UNI-T UT210D True RMS AC/DC Current Voltage Mini Digital Clamp Meter Auto Range Resistance Capacitance Tester
Nice little multi tester for AC/DC current up to 200A, voltage, resistance. I’m using this for a while and I’m happy with the size and functionality. It suits all my electrical work I’m doing. It uses 2 AAA batteries which I recharge from my solar of course 😉
Amazon product link
AliExpress product link

EBC-A20 Battery Tester 5A Charge 20A Discharge

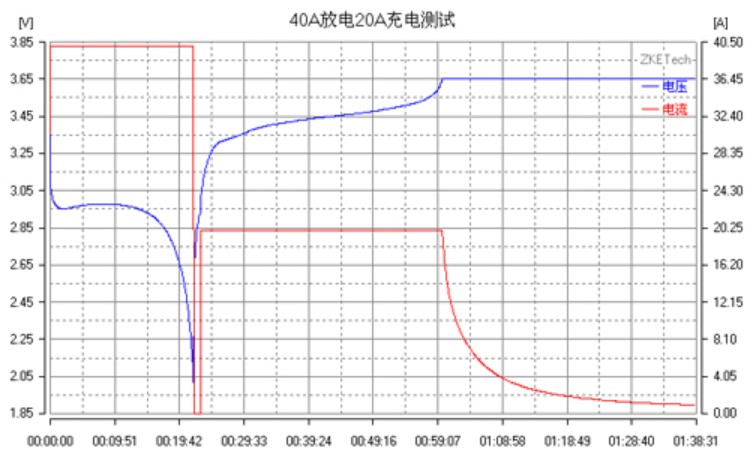

Great tester I’m using to check single cells as well as 12V setups. The included PC software enables remote operation and draws beautiful graphs of your charging and discharging voltage/current.
Can be fully programmed to suit all kind of batteries. Full CC/CV support
Voltage setting: Disacharge: 0.00-30.00V
Charge: 0.00-18.00V
Current setting: Discharge: 0.10-20.00A
Charge: 0.10-5.00A
AliExpress product link
Manual English

Software:
Download all 3 files:
– eb_setup_v1.8.5en_1001.exe is the actual software
– PL2303_DriverInstaller(USB to TTL converter).exe is the driver for the USB to TTL cable converter (blue USB cable)
– EB Tester Software User Manual V1.8.5.pdf is the software manual in PDF form.
Link to my Dropbox shared folder containing all files.

Link to all collected battery data (PDF and .csv files). You can download and install the software even without having the actual tester to analise all test data I provide here.

EBC-A40L High Current Lithium Power Battery Capacity Tester
Charge and Discharge with up to 40A!
Including PC software
Voltage range: charge 0-5V, discharge 0-5V
Current range: charge 0.1-40A, discharge 0.1-40A
Discharge mode: CC constant current discharge / CP Constant power
AliExpress product link
Manual English

Software:
Download all 3 files:
– eb_setup_v1.8.5en_1001.exe is the actual software
– PL2303_DriverInstaller( USB to TTL converter ).exe is the driver for the USB to TTL cable converter (blue USB cable)
– EB Tester Software User Manual V1.8.5.pdf is the software manual in PDF form.
Link to my Dropbox shared folder containing all files.

Link to all collected battery data (PDF and .csv files). You can download and install the software even without having the actual tester, to analyse all test data I provide here.

Digital YR1035 Lithium Battery Internal Resistance/Impedance Tester
Range minimum resolution accuracy
– 20mΩ 0.01mΩ 0.7%+7
– 200mΩ 0.1mΩ 0.5%+5
– 2Ω 1mΩ 0.5%+5
– 20Ω 10mΩ 0.5%+5
– 200Ω 0.1Ω 0.6%+5

Range Accuracy ± (% reading + % range)
– 1V 0.35+0.015
– 10V 0.30+0.010
– 100V 0.30+0.015
AliExpress product link
Amazon product link

Megohmmeter Digital Earth Ground Resistance Meter
Resolution: 0.01 ohm
Data Hold: yes
Measuring range of earth resistance: 0-2000Ω. 0/20/200/2000 ohm ±(2%+3)
Great device to measure the earth/ground connection of your solar system and other devices of your installation.
AliExpress product link
Amazon product link

Wanptek High Power Laboratory stabilized power supply
15V up to 200V DC, 3A-60A -> choose the max voltage and amps you want when ordering.
I have one of these power supplies with 60V and 20A output (1200W) for charging all kind of batteries and cells. Very powerful!
Super handy, very versatile and great quality.
AliExpress product link
NEW! 15V/100A or 60V/50A AliExpress product link

Wanptek Laboratory Stabilizer DC Power Supply Adjustable 60V 5A
Ideal for testing and charging Lithium cells and batteries (even my 48V battery can be charged!)
Output voltage stabilizing value: 0-60V/continuously adjustable
Output constant current value: 0-5A/continuously adjustable
Ripple voltage: VPP ≤ 1%
Overall efficiency: ≥ 89%
Digital display: three LED digital tube double display
Display resolution: 0.1V/0.01A/0.01V/0.001A
Display accuracy: ± 1% + 2digits
Working temperature: (- 10 ～ 45) ℃
Storage temperature: (- 20 ～ 60) ℃
Relative humidity: 90% (40 ± 5 ℃)
AliExpress product link
Amazon product link (110V version)

Powermeter / Wattmeter
I’m using this tool all the time to analyse the power and energy consumption for different loads.
It’s a sup useful tool and gives you all information in one spot. Volt, Ampere, Watt, KwH, Lo and High figures and also costs can be programmed.
AliExpress product link
Amazon product link

180W Digital Capacity Tester/Electronic Load DL24P
(upgraded version, the one with the rainbow LED fan!)
Great little all-in-one tester with colour display and voltage sense cables to eliminated voltage drop during testing.
Specs: 200V DC, 20A, 185W max, CV, CC, CR and CP modes, Bluetooth and app (watch the review about that below!)
AliExpress product link
Amazon product link

Watch the full test and review here.

Modular Battery and Capacity Tester/Electronic Load DL24MP
Can be extended from 150W/25A to 600W/40A by adding extension modules.
AliExpress product link

Test video is coming soon…

Battery Monitor and Capacity Tester

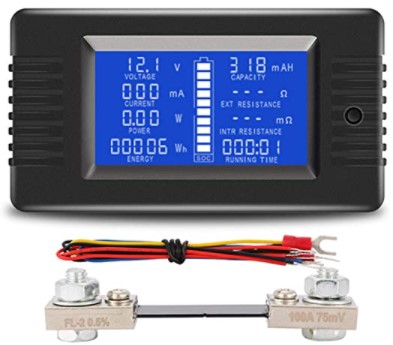

Very good and precise device to monitor your battery and test the capacity. I have used this multiple times now and will probably install it in a separate box so I don’t have to wire this up every time.
There are several versions out there but I think this one gives the best functions and overview. Shunts are also coming in different variants from 100A-500A.
Amazon product link
AliExpress product link

Solar Panel MPPT Tester
Very good device if you want to check your solar panels. It does auto MPPT tracking and also shows the open circuit voltage Voc.
Especially when buying used solar panels, this tester helps you quickly identifying if the panel are OK. There are now new versions available with better display and also higher voltage and current specs.
Power: 0.1~800W
Voltage: 12~60V
Current: 0~35A
AliExpress product link
Amazon product link

FLIR IR Camera for Smart Phone

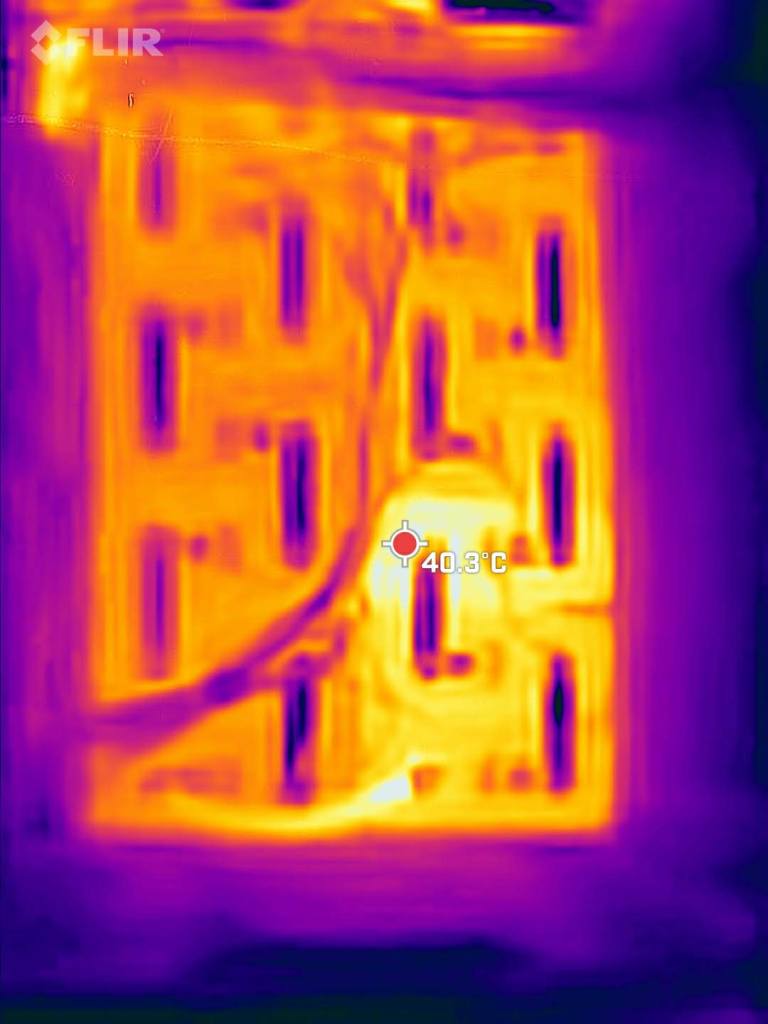

Wow, this thing is great. I always wanted one for my electrical work. It makes such a huge difference to check on you work and highlight connections which are not optimal. Or reveals battery issues as I have shown on my channel.
It simply connects to your smart phone so make sure you order the right connector (Micro-USB, USB-C or Lightning for iPhone)

AliExpress product link
Amazon product link

Digital Torque Wrench 1/2″ 0.3- 200Nm Adjustable
This digital torque meter comes in different sizes. I went for the smallest on going from 0.3-30Nm. Some sets also come with adapter for from 1/2″ to 1/4″ or 1/2″ to 3/8″

AliExpress product link
Amazon product link

Digital Infrared Thermometer
I’m using one of these laser gun thermometers in almost every episode. It’s so handy to measure temperatures with just one click. Great little device and very helpful when building batteries!
Amazon product link
AliExpress product link

Solar Power Meter/Tester SM206

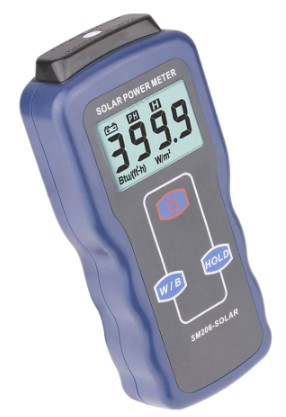

Great and easy to use tester which measures the solar intensity and power in W/m². Simply turn it on and it starts displaying the power coming from the sun. It’s also ideal to orientate solar panels the optimal way so they point perfectly towards the sun.
Range: 0.1-399.9 W/m², 1-3999 W/m²
AliExpress product link
Amazon product link

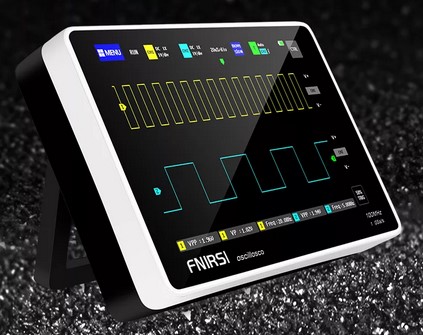

FNIRSI-1013D Digital Tablet Oscilloscope
– 100MHz analog Bandwidth
– 2 channel operation
– AC\DC coupling mode
– integrated Li battery (recharge through USB)
– 800×480 touch screen operation
– 1x and 10x probe included

Great device. I use this all the time to look at DC ripple signals of inverters and also solar charge controllers. Save screenshots with a press of a button!
I also bought the 100x probe to directly be able to measure 240VAC output of inverters.

Digital Tablet Oscilloscope:
AliExpress product link

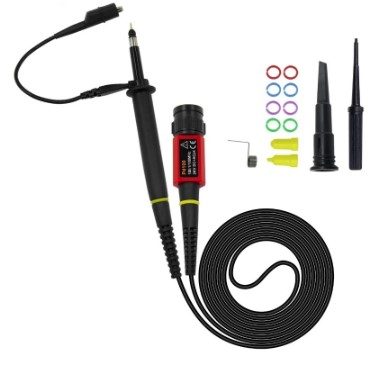

100x probe for measuring 240V:
AliExpress product link

ISDT BattGo BG-8S Smart Battery Checker Balancer

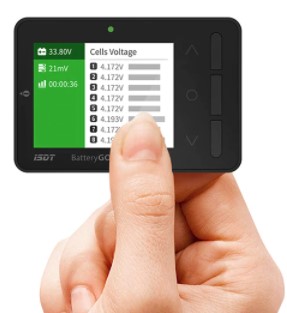

Battery ‘smart’ monitor for up to 8 cells. Shows voltages of all cells and can also balance your battery pack within 5mV.
Working voltage: 5.0V-36V
Input voltage 1s: 0.8V-15V
Input voltage 2-8S: 0.8V-4.8V
Battery cells: 1-8S
Voltage measurement accuracy: ±0.005V @ 4.2V
Balancing cells accuracy: < 0.005V

AliExpress product link
Amazon product link

CellMeter 8 Multifunctional Digital Power Servo Tester 2S-8S For Li-Po,Li-lon,Li-Fe,NiCd,NiMH
Nice little tool to monitor your individual battery cell voltages up to a 8s pack (24V). It gives a quick overview about all cell voltages and also has min/max/delta function.
Amazon product link
AliExpress product link

Balance cables 1S-8S:
AliExpress product link

Liitokala Lii-500 NiCd/NiMH/Li-ion charger
I’m using this charger for over a year now and am pretty happy with it. I handles all kind of cells and measures capacity and also internal resistance. It can be powered from any 12V DC source (but a power supply is also included)
Amazon product link
AliExpress product link

Watt Meter and Power Analyzer
These are cheap power meters which show current, voltage, watts and energy. They are reasonable accurate and helpful for quick testing.
Amazon product link
AliExpress product link

Mini Digital Voltmeter Ammeter
DC 100V 10A
I use these ones for testing purposes. Very cheap devices but OK and easy to use.

AliExpress product link

Portable Pocket Digital Oscilloscope 1M Bandwidth
I’m using this small Oscilloscope to check PWM and MPPT solar controllers. It’s very handy and comes with a build in battery. It can be used for up to 40V without any further probe.
Amazon product link
AliExpress product link

10x probe for Mini Oscilloscope to extend voltage to up to 400V:
Amazon product link
AliExpress product link
